Thule CK-7 The thinnest snow chain in the world

The thinnest quality snow chain in the world, guaranteed a maximum of 7 mm inside the rear and top of the tyre. The Thule CK7 is deal for cars with space problems between the wheel and the wheel arch and suspension parts etc.

Fitting

Fitting the Thule CK-7 can easily be achieved in just 5 simple steps.

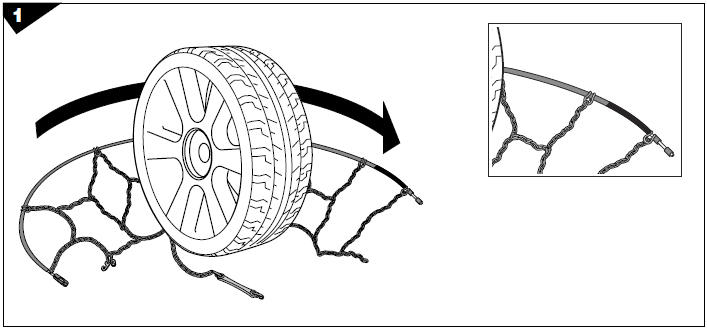

Step 1

• First Push the mounting cable behind the rear of the tyre, so that both ends are of the cable (a & b) are visible at each side of the tyre, making sure that no parts of the chain or cable are trapped under the tyre tread.

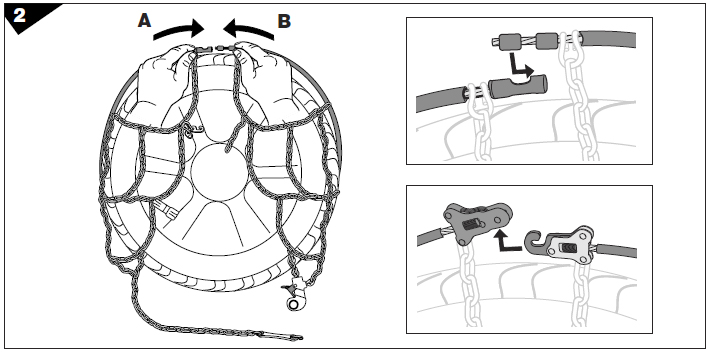

Step 2

• Grab  the ends of the chain and lift upwards to the top of the tyre and secure the connectors together as shown.

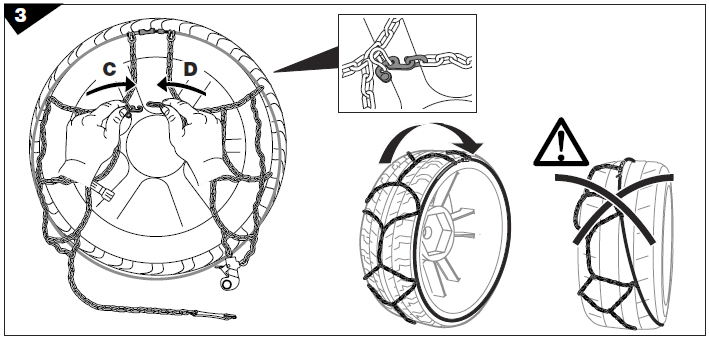

Step 3

• Connect the chain hooks at the front of the chain and then push the blue coloured cable towards the back of the tyre letting it drop down on to the rear sidewall.

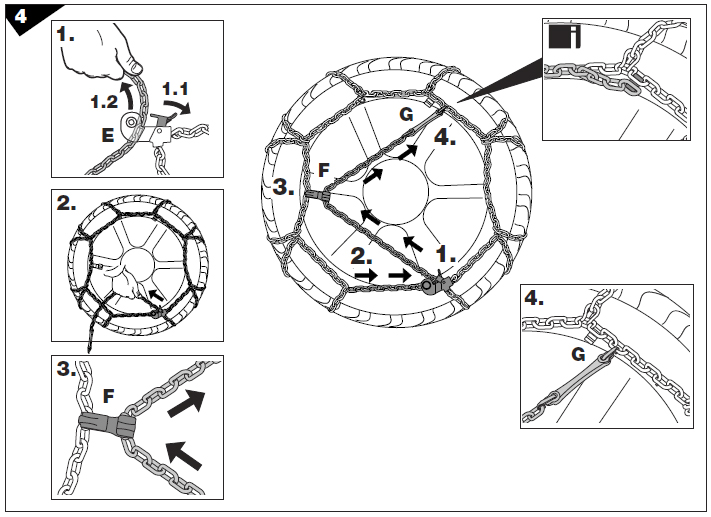

Step 4

• Pull the outside tensioning chain through the fastening ratchet and side hooks to secure a tight fit and then connect the end clip onto the side chain as shown.

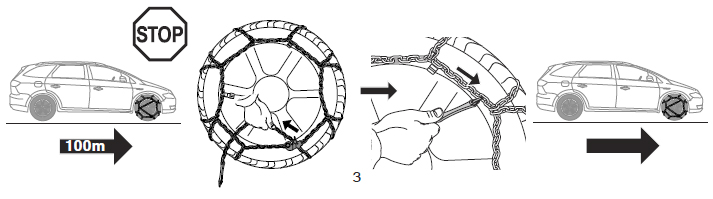

Step 5

• Move your vehicle either backwards or forwards to ensure that the chain relaxes around the tyre, and then if necessary re adjust the tensioning chain.

http://www.youtube.com/watch?v=5ySvD6MixjA

Features

• 7 mm inside and on the tread clearance
• Special twisted links, reduced chain thickness to 7 mm
• Special steel tread
• Manual tensioning system: keeps the chain tightened while driving
• Micro regulation system for perfect tensioning of the chain
• Closed shortening hooks avoid coils on the chain
• Anti-scratch nylon bumpers protect the alloy wheels
• Self tensioning (1 stop for fitting)
• ABS/ESP compatible

Recommended by car manufacturers

Thule CK-7 is the snow chain model often suggested by car manufacturers as a solution for vehicles with problems with snow chain fitting:

• Citroen C4 Picasso
• Citroen C3 Picasso
• Fiat Bravo
• Lancia Delta
• Peugeot 1007
• Peugeot 207
• Peugeot 308
• Renault Laguna II
• Renault Laguna III
• Seat Exeo

Chain Size:

CK7-060 cover tyre sizes, 205/60 r13, 195/65 r13, 185/70 r13, 175/80 r13, 195/60 r14, 185/65 r14, 175/70 r14, 165/75 r14, 165/80 r14, 195/50 r15, 185/55 r15, 175/65 r15, 195/45 r16, 185/50 r16, 175/55 r16

CK7-065 cover tyre sizes, 205/55 r14, 185/70 r14, 175/75 r14, 205/50 r15, 195/55 r15, 185/60 r15, 215/40 r16, 205/45 r16, 175/60 r16

CK7-070 cover tyre sizes, 195/70 r13, 175 r14, 205/60 r14, 195/65 r14, 175/80 r14, 195/60 r15, 185/65 r15, 175/70 r15, 195/50 r16, 205/40 r17

CK7-075 cover tyre sizes, 215/50 r15, 205/55 r15, 215/45 r16, 205/50 r16, 185/55 r16, 185/60 r16, 225/35 r17

CK7-080 cover tyre sizes, 205/70 r13, 185 r14, 225/55 r14, 205/65 r14, 195/70 r14, 185/80 r14, 205/60 r15, 195/65 r15, 185/70 r15, 195/55 r16, 195/60 r16, 215/40 r17, 205/45 r17

CK7-085 cover tyre sizes, 225/60 r14, 225/50 r15, 225/45 r16, 205/40 r18

CK7-090 cover tyre sizes, 195 r14, 205/70 r14, 195/80 r14, 225/55 r15, 215/60 r15, 205/65 r15, 195/70 r15, 215/50 r16, 205/55 r16, 195/65 r16, 235/40 r17, 215/45 r17, 205/50 r17

CK7-095 cover tyre sizes, 235/60 r14, 235/55 r15, 225/60 r15, 215/65 r15, 205/70 r15, 195/75 r15, 225/50 r16, 215/55 r16, 205/60 r16, 225/45 r17, 215/50 r17, 215/40 r18

CK7-097 cover tyre sizes, 215/60 r16, 205/65 r16, 245/40 r17, 205/55 r17, 245/35 r18, 225/40 r18, 215/45 r18, 195/70 r16

CK7-100 cover tyre sizes, 215/70 r14, 195 r15, 235/60 r15, 225/65 r15, 215/70 r15, 195/80 r15, 245/45 r16, 235/50 r16, 225/55 r16, 235/45 r17, 225/50 r17, 215/55 r17, 235/40 r18, 225/45 r18, 235/35 r19

CK7-102 cover tyre sizes, 225/60 r16, 215/65 r16, 255/40 r17, 265/40 r17, 245/45 r17, 235/50 r17, 255/35 r18, 245/40 r18, 235/45 r18, 245/35 r19, 225/40 r19, 235/40 r19

CK7-103 cover tyre sizes, 225/55 r17, 215/60 r17, 275/35 r18, 245/40 r19, 215/55 r18

CK7-104 cover tyre sizes, 235/70 r15, 245/55 r16, 235/60 r16, 275/40 r17, 255/45 r17, 235/55 r17, 225/60 r17, 255/40 r18, 245/45 r18, 255/45 r18, 225/50 r18, 275/30 r19, 255/35 r19, 235/45 r19, 265/30 r20, 245/35 r20
